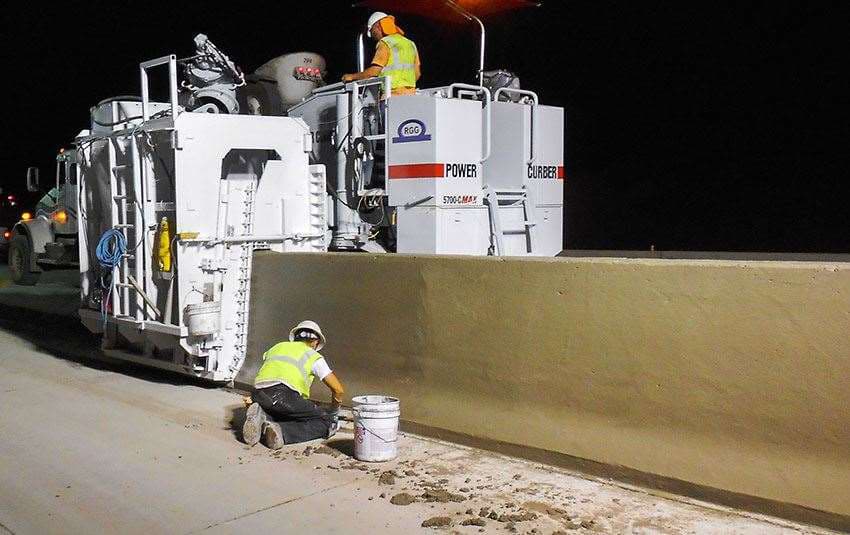

The 5700-C is the latest in the highly successful 5700 Series of curb and gutter machines by Power Curbers. This curbing machine’s compact size and versatility allow contractors to achieve high levels of productivity. It gets in and out of tight spots quickly, making tight radius work in parking lots much quicker. In addition to curb and gutter work, the 5700-C pours highway safety barrier, bridge parapet, sidewalk, golf cart paths, agricultural foundations, irrigation ditches and stadium
Specifications
Engine
Cummins QSB4.5-130C diesel4-cylinder/4-stroke, turbo charged, Tier III emissions
Engine Power
130 HP (97kW) @ 2400 RPM
Slipform Paving
Curb/Sidewalk: Maximum 7’ (2m) wide in the offset position or 10’ (3m) in the center pour position. Maximum 8’ (2.5m) wide offset or 14’ (4m) center pour with MAX Package. Barrier/Parapet: Maximum 5’ (1.5m) tall or 8’ (2.5m) with MAX Package. Mold: One, up to 32” (813mm) wide, with quick release, interchangeable hopper is standard.
Hydraulic Adjustable Offset
Lateral Shift: 24” (610mm) hydraulically with positive mechanical locking. Vertical Shift: 25” (635mm); 16” (406mm) hydraulically, 9” (228mm) mechanically.
Water System
Washer: 2,000 psi (138 bar or 13.8Mpa) high pressure system with trigger control and adjustable spray nozzle. Tank: Stainless steel with 132 gallons (500 liters) capacity.
Service Capacities
Fuel Tank: 66 gallons (250 liters) Hydraulic Tank: 50 gallons (189 liters)
